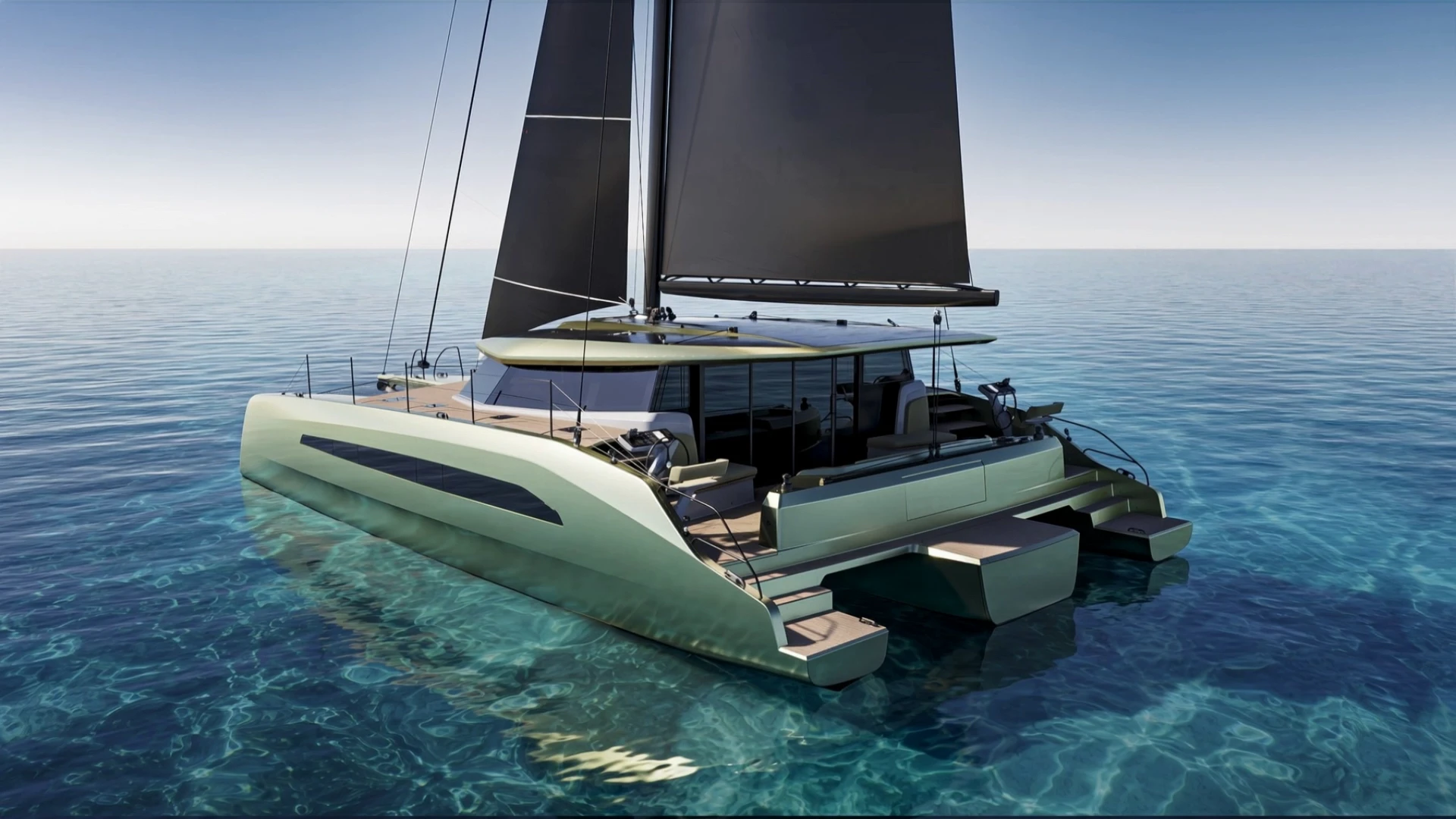

VMG 53
Three hulls. A new perspective.
The VMG 53 puts sailing life at its heart. Explore the deck, step into the saloon and imagine the finishes for your next journey.
01 / 03

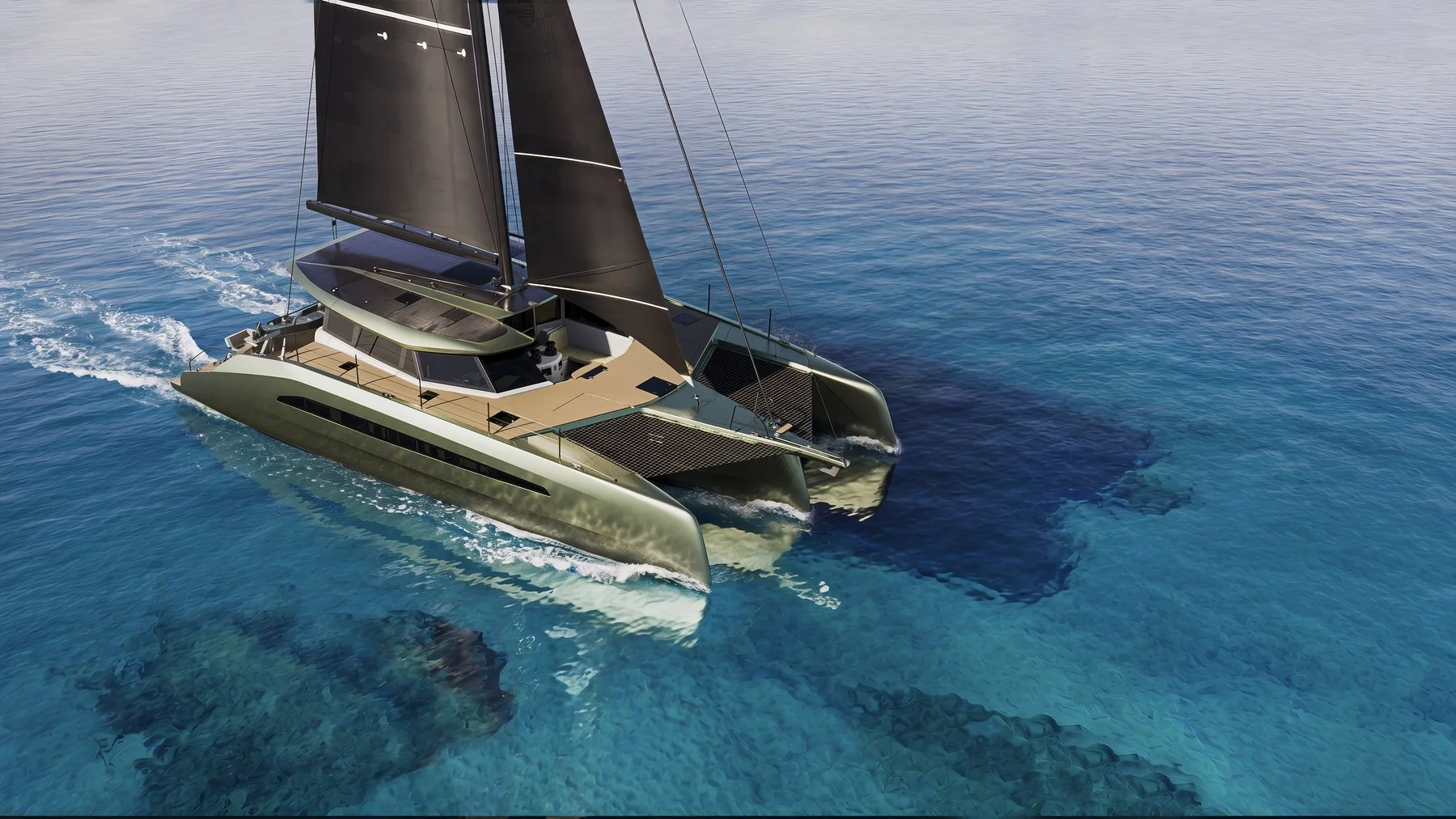

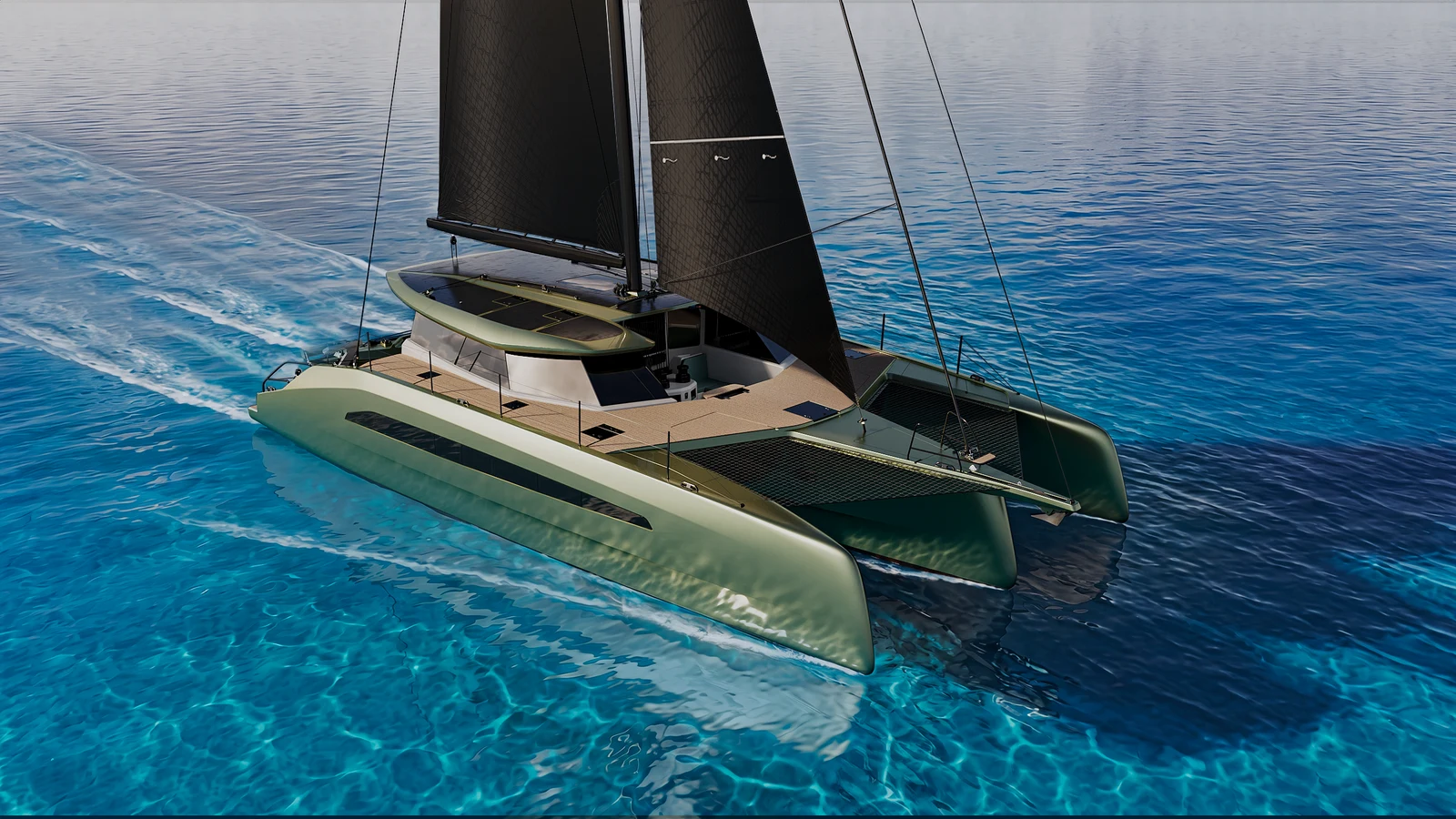

The sea, all around.
Three hulls and a deck to enjoy. Discover the VMG 53 from a different perspective.
VMG 53 / Design & Features
Design, up close.
Five views of the design choices that define the VMG 53.
Your VMG, down to the last detail.
Choose colours and materials. Watch your project take shape.
Project render · Indicative finishes
VMG 53 technical specifications
Family dimensions and Regatta details, grouped by area. Builder-described equipment must be confirmed for the requested edition and specification.
Sources reviewed:
- Length overall (LOA)
- 17.22 mVMG 53 family
- Waterline length (LWL)
- 15.79 mVMG 53 family
- Beam
- 8.8 mVMG 53 family
- Draft, daggerboard up
- 2.3 mRegatta edition
- Draft, daggerboard down
- 4.1 mRegatta edition
- Air draft
- 26.2 mRegatta edition
Draft and displacementRegatta edition
- Draft, daggerboard up
- 2.3 m
- Draft, daggerboard down
- 4.1 m
- Air draft
- 26.2 m
- Weight / displacement
- Confirm with the builder
Sail planRegatta edition
- Mainsail
- Confirm with the builder
- Genoa / G2
- 90 m²
- Staysail / J1
- 44 m²
- Code 55
- 150 m²
- Gennaker / A2
- 255 m²
Structure and designRegatta edition
- Hulls
- E-glass / Corecell foam sandwich; vacuum-infused epoxy
- Deck, roof and structural bulkheads
- Carbon fibre; carbon/epoxy bulkheads with Corecell core
- Watertight bulkheads
- 6
- Naval architecture
- VPLP Design
- Interior design
- CCA — Christophe Chedal Anglay
- Structural and systems engineering
- Thorne Yacht Design
- Builder
- Evolution Marine Manufacturing — Cape Town

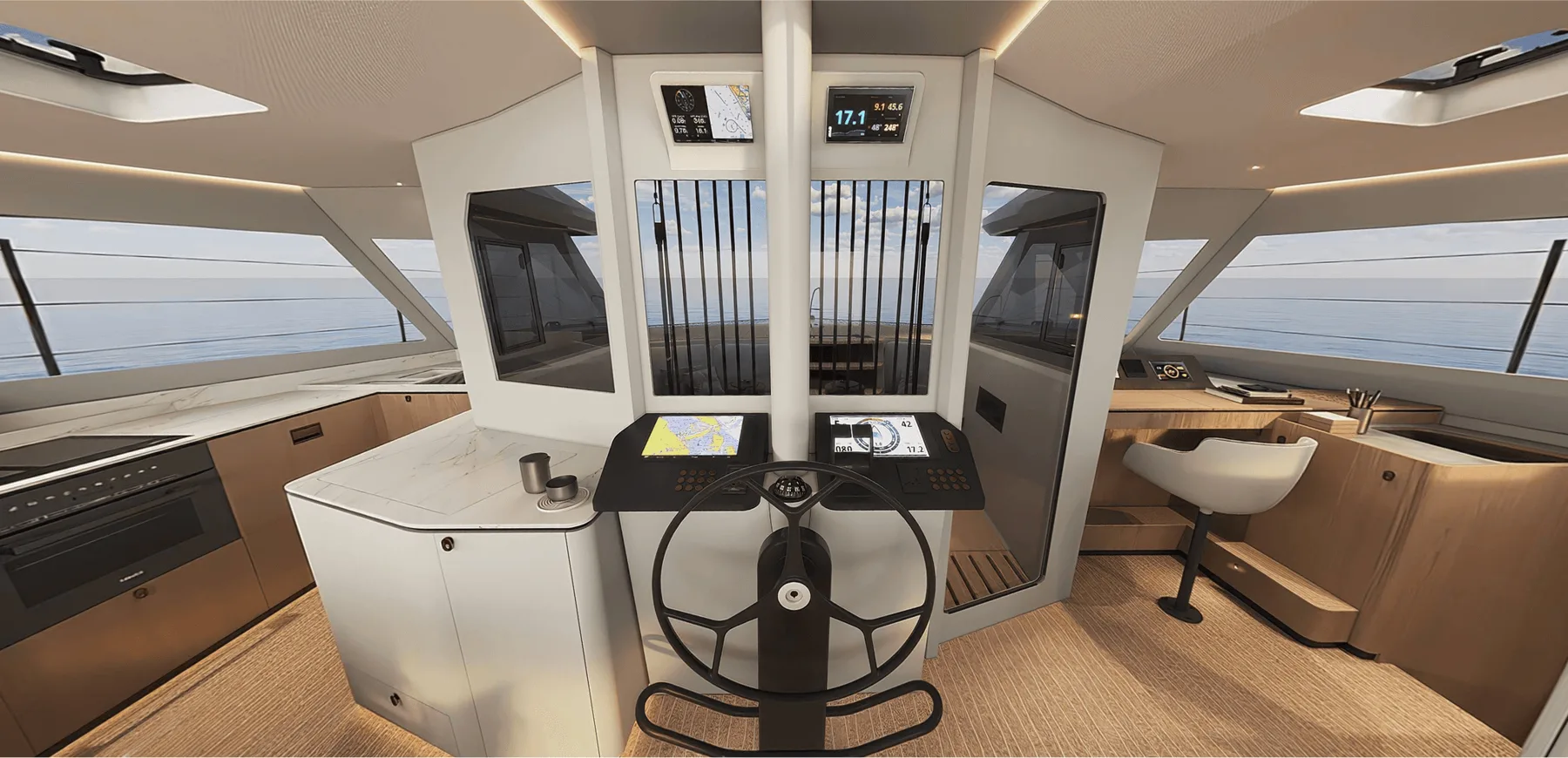

Helms and electronicsEquipment described by VMG
- Helm stations
- 3: one protected in the saloon and two aft
- Carbon wheels
- 800 mm forward; 700 mm at the aft helms
- Forward chartplotters
- 2 × B&G 16″ SRX
- Aft chartplotters
- B&G ultrawide 12″ / 15″
- Communications
- Vesper VHF / AIS
- Additional displays
- Optional Nemesis

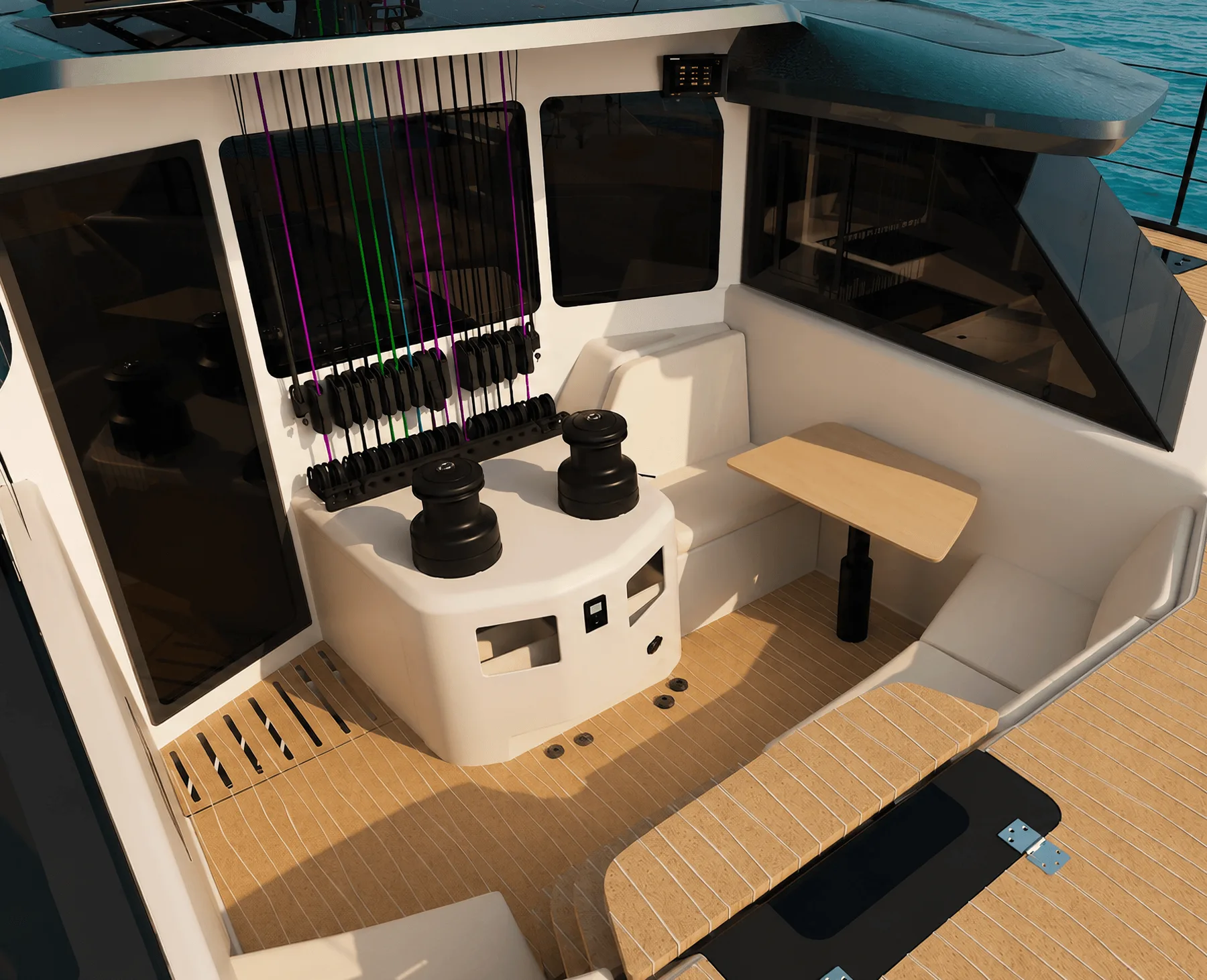

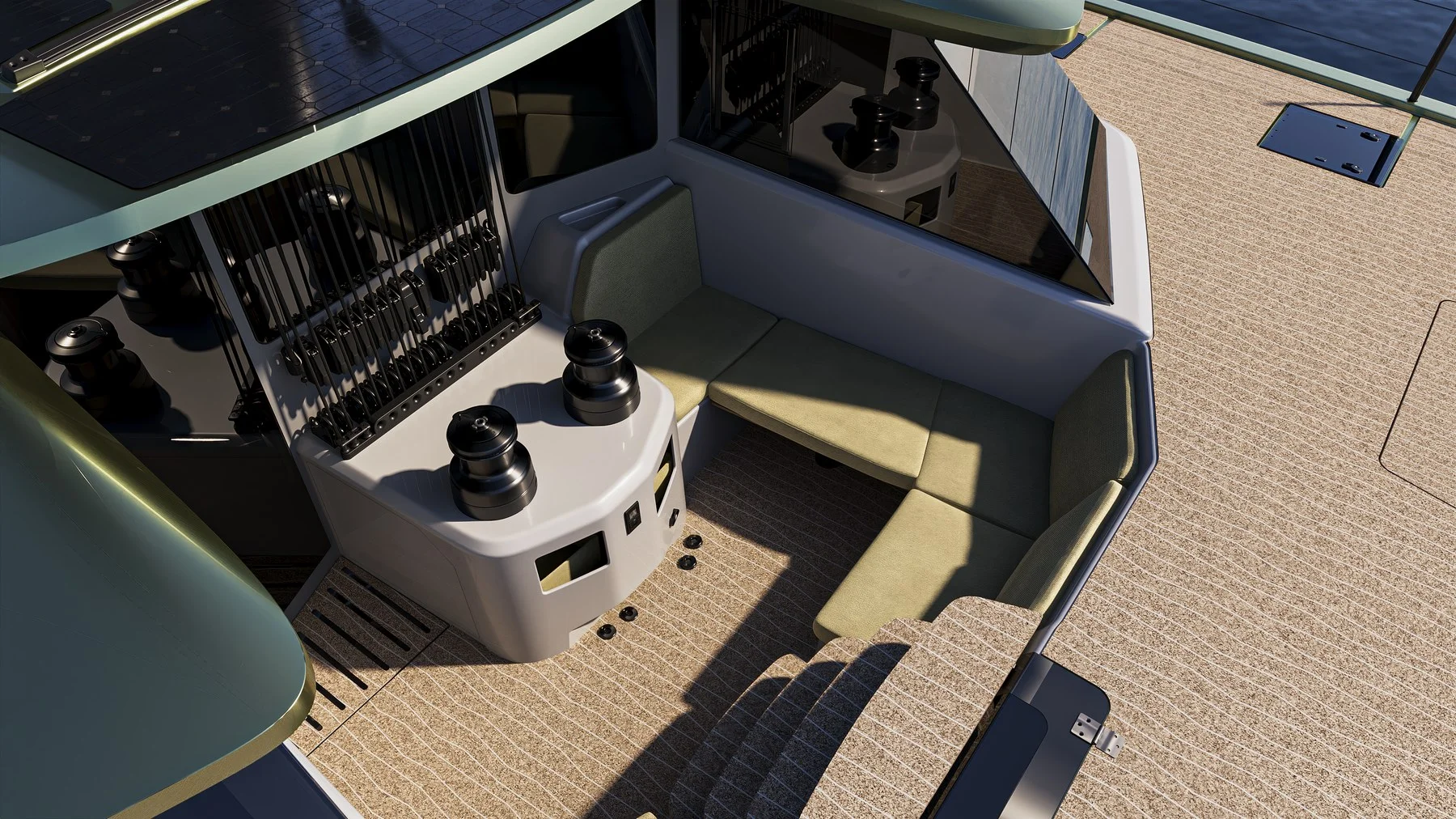

Sail pit and controlsEquipment described by VMG
- Winches
- 2 × Harken 80 Performa, 24 V
- Controls
- Foot controls; mainsheet on captive winch
- Daggerboard
- Central, powered and housed in the Pitbox
- Autopilot
- Control at the winch pedestal
- Seating
- Up to 4 people; height-adjustable table
- Monitoring options
- Nemesis 9″; Rigging Projects; Cyclops Marine Smartrig
Accommodation and equipmentRegatta edition
- Cabins described in the specification
- On-deck suite; port suite; starboard forward cabin; central cabin
- Galley
- U-shaped, Miele induction hob and Kohler sink
- Galley fridge-freezers
- 150 L + 43 L
- Cockpit fridge
- 76 L
- Washer-dryer
- Miele 8 kg
- Systems monitoring
- C-Zone 10″
- Technical space protection
- Stat-X
- Summer kitchen
- Optional

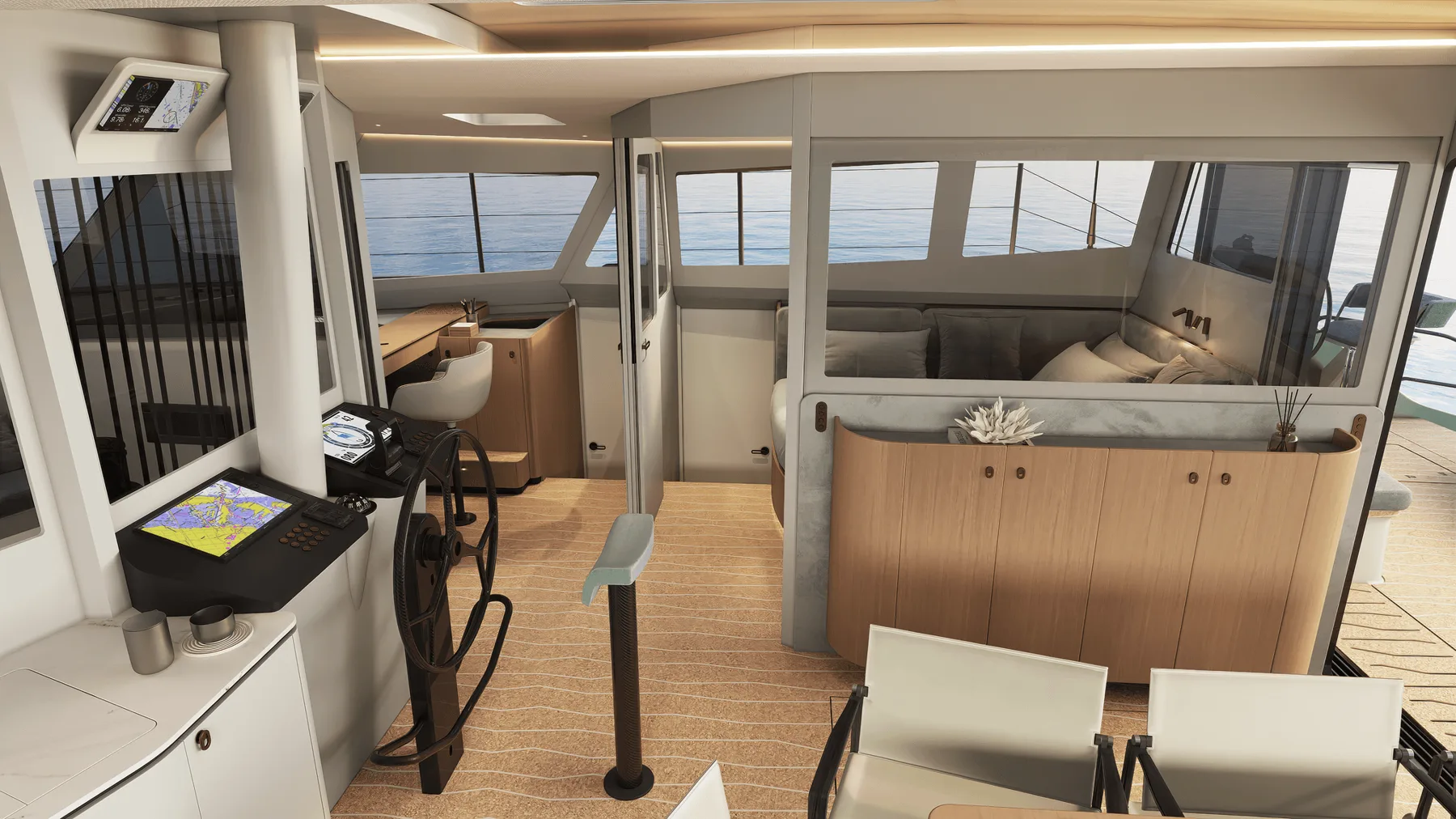

Smart GlassEquipment described by VMG
- Technology
- PDLC: clear / opaque
- Claimed UV protection
- Up to 99%
- Claimed IR heat reduction
- Over 78%
- Control
- Physical, remote and C-Zone; clear override at each helm
- Projection
- Opaque surface can be used as a screen

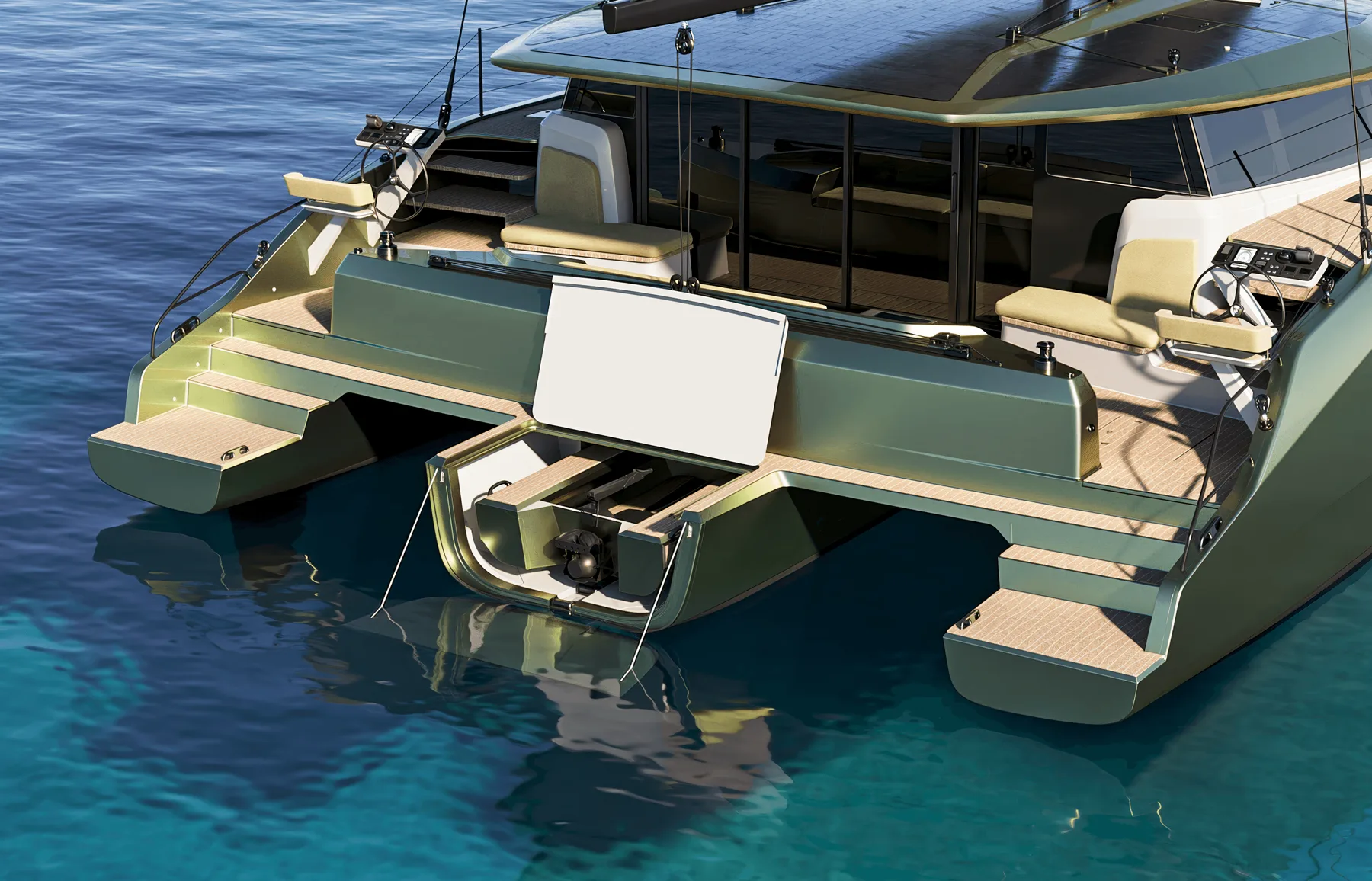

Tender and garageEquipment described by VMG
- Tender
- VMG carbon
- Tender length
- 3.3 m
- Tender propulsion
- ZeroJet 30 kW
- Garage
- Powered, lockable and separated by a watertight bulkhead
- Recovery
- Remote, with marine winch and dedicated rollers
- Charging
- Integrated fast charger
- Garage hinges
- Titanium, rated for permanent waterline immersion
Storage and Adventure LockerEquipment described by VMG
- Galley open shelving
- 4 m²
- Saloon open shelving
- 1.2 m²
- On-deck suite locker volume
- 1.2 m³
- Port suite locker volume
- 2.1 m³
- Adventure Locker access
- From deck and port suite through a watertight door
- Adventure Locker equipment
- 110 V outlets, charging, Scanstrut Air Station, LEDs, ventilation and dehumidifier
Edition construction and schedule
VMG 53
Vacuum-infused E-glass epoxy composite, carbon reinforcement and Corecell core
Autumn 2027
VMG 53 Regatta
Hybrid E-glass / carbon composite; carbon roof, deck and structural bulkheads
Listed as available by VMG
VMG 53 GP
Vacuum-infused full-carbon epoxy composite with Corecell core
Spring 2027
Builder-announced schedule; actual availability and delivery must be confirmed.
